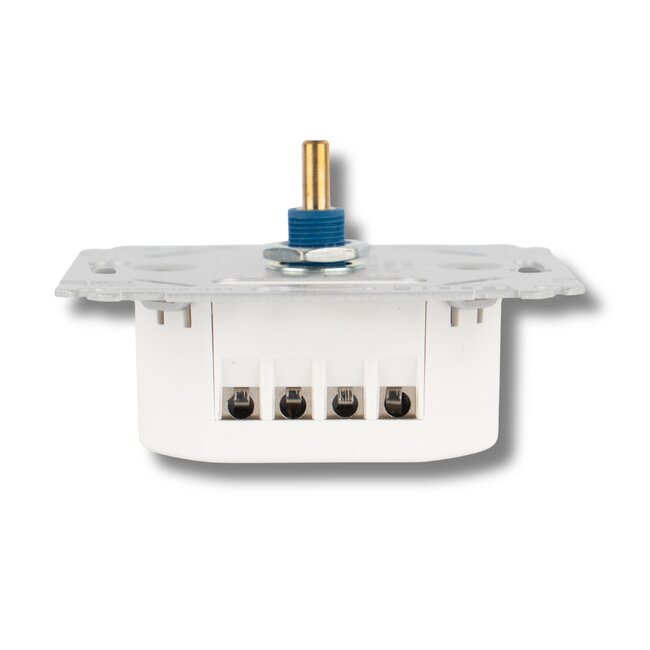

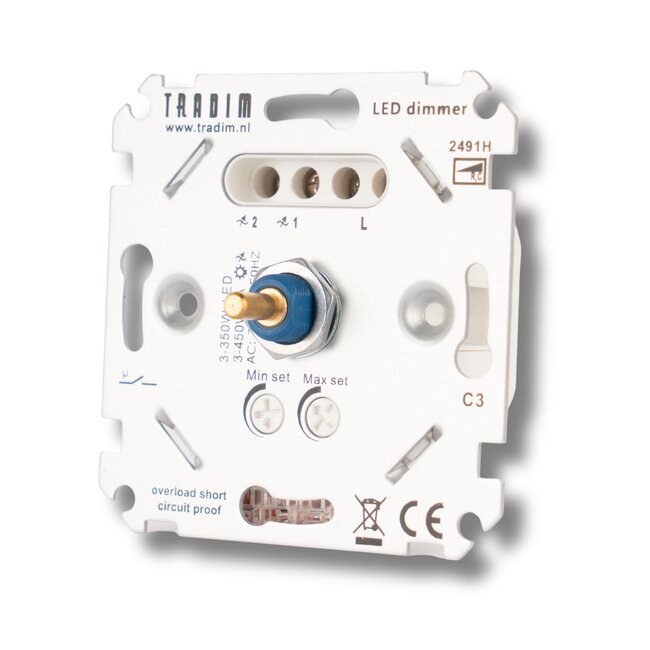

This is the Tradim 2491H LED Wall Dimmer! This wall dimmer model stands for reliability and quality. The dimmer can be combined with most brands of switching material and is suitable for dimming most (filament) LED lamps.

• Phase-cut, manually adjustable minimum and maximum brightness.
• 2-wire connection.
• No neutral wire required.
• Suitable for two-way switching (hotel switching, with traditional changeover switch).
• Fitted with soft-start function and memory of last dimming position.

Light sources

On a dimmer, you use dimmable light sources. The quality of the LED bulb determines how well it dims. The 2491H LED Wall Dimmer is suitable for the following lamps:

	LED lamps - 12 V: maximum 360 Watt * - 230 Volt: maximum 350 Watt
	LED Filament lamps - 230 Volt: 350 Watt maximum Filament stabiliser may be required!
	Halogen bulbs - 12 V: maximum 360 Watt * - 230 volts: maximum 450 Watt
	Incandescent bulbs - 230 V: maximum 450 Watt

* Depending on lamp and driver/transformer combination

Maximum power

This 2491H LED Wall Dimmer is suitable for 3-450 W/VA or 3-350W LED. Never load a dimmer more than 80% of its maximum power!

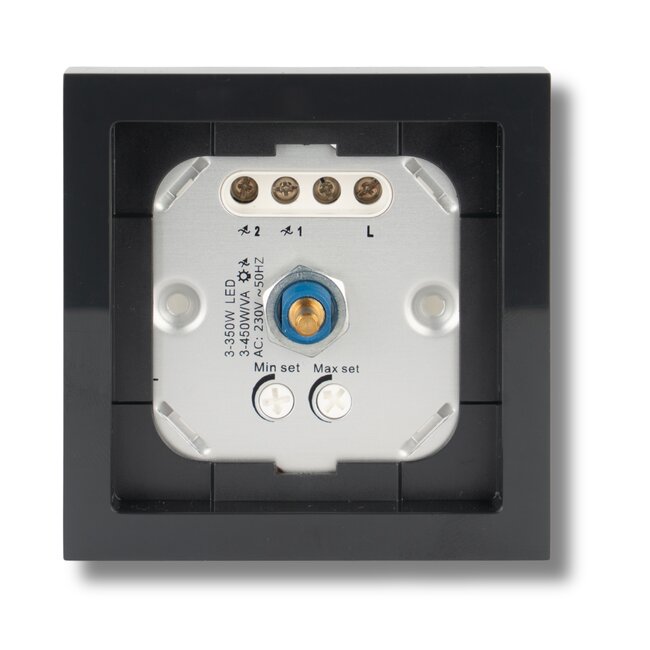

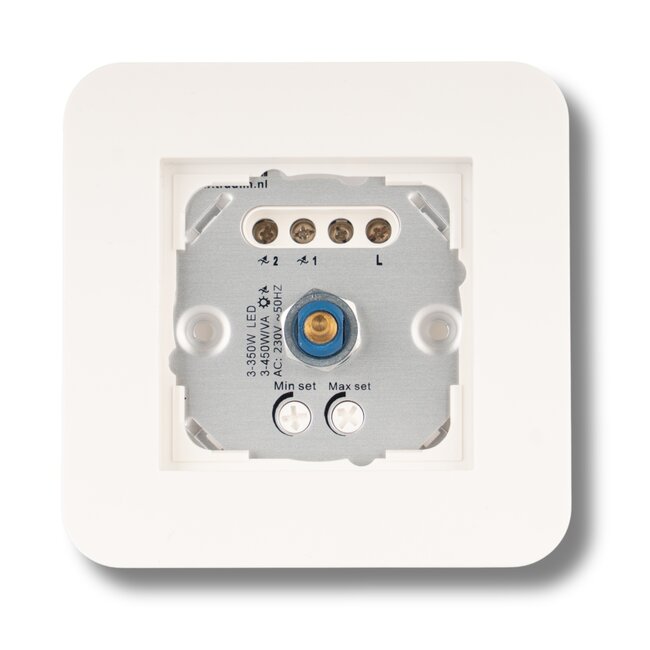

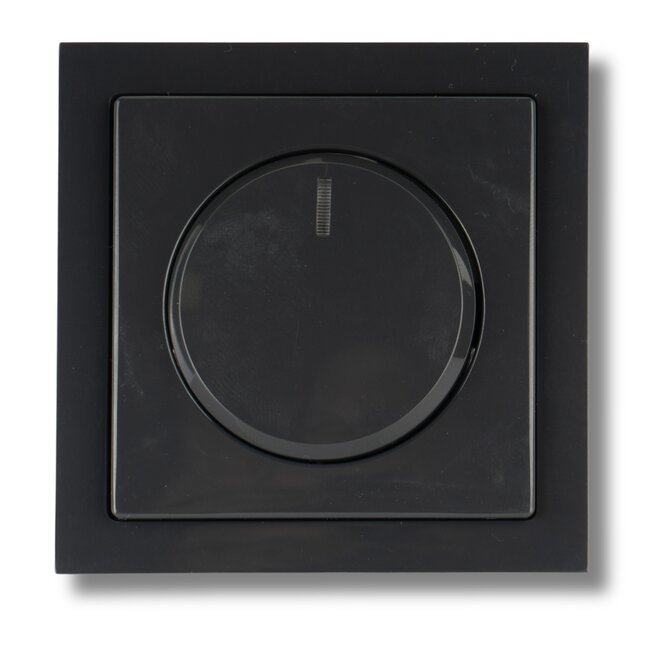

Frame and dimmer buttons

The 2491H LED Wall Dimmer is supplied without frame and dimmer knobs. You can easily order these here. The standard switching materials from Busch Jaeger, Jung, Berker and Peha are suitable for adding to this dimmer.

Installation

Always connect the dimmer according to the wiring diagram provided. Do you have no knowledge of electricity? Then have this done by a professional! The dimmer fits into standard flush-mounting boxes.

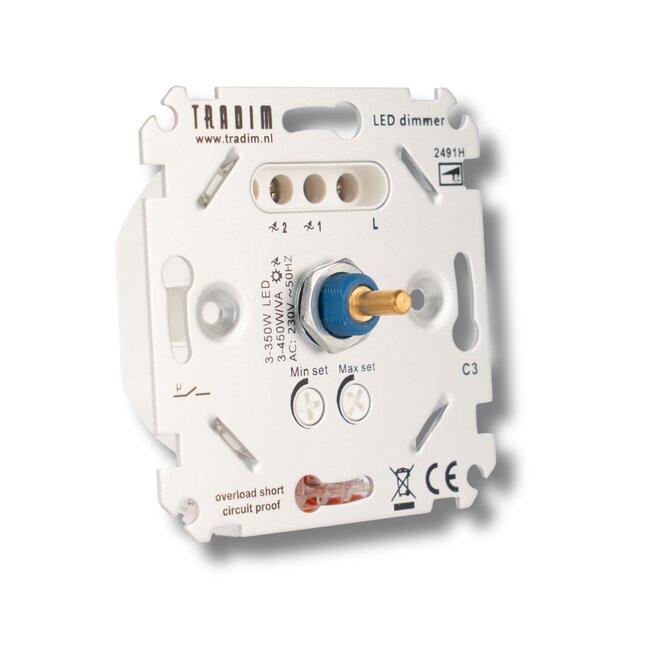

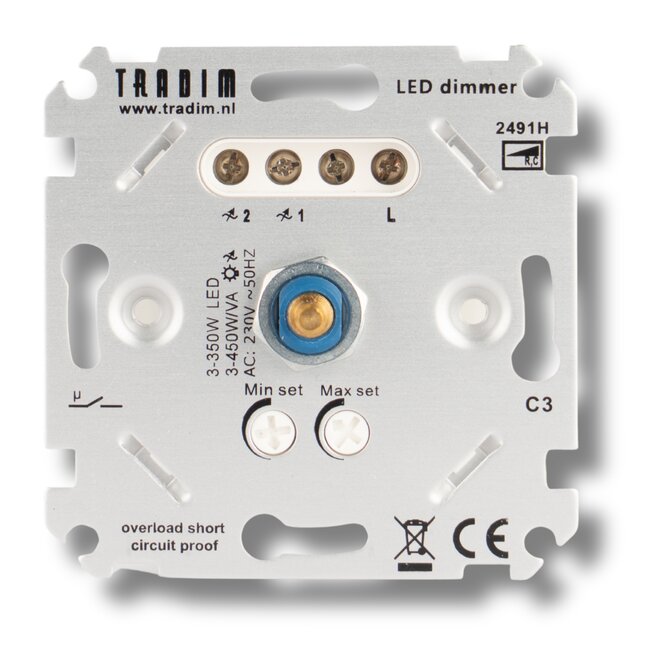

The adjustment screws make it easy to realise the right dimming range.

TIP! Always test the dimmer before fitting it in the wall. Damaged dimmers due to screwing are not covered by our return policy.

Wall dimmers

Wall dimmers, installed in the wall, allow you to adjust the light intensity in a room. They improve the atmosphere for different occasions and save energy by reducing power consumption. They also extend the life of lamps. These versatile devices are valuable additions to both domestic and commercial spaces.

Warranty

We offer a 2-year warranty. Because the 2491H LED Wall Dimmer has no peak voltage, this has no consequences for the lifespan of your lighting.

Manual

Click here for the user manual
