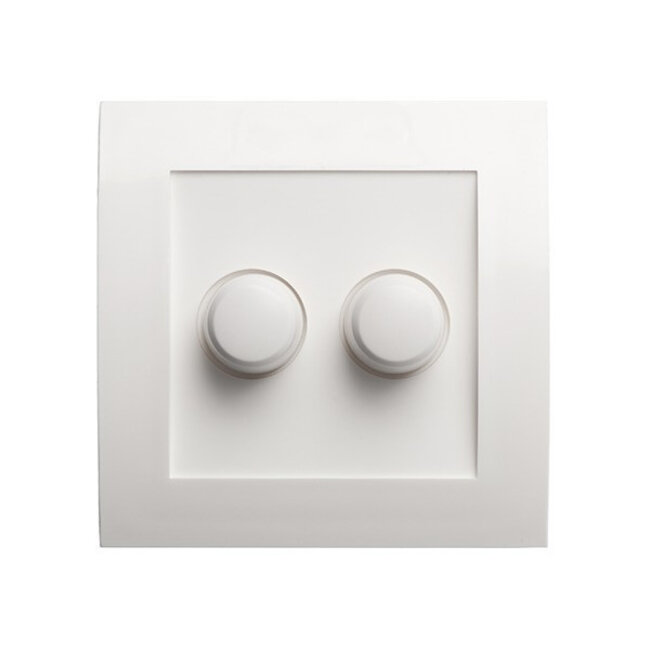

Tradim Digital LED duo wall dimmer 2 x 3-100W/VA including hotel switch

This digital LED duo wall dimmer (230VAC/50Hz, 2x 3-100W/VA) is suitable for dimming (filament) LED, halogen and incandescent lamps. It is a phase cut dimmer ('R,C'). The dimmer has a soft start for a favourable influence on the life span of the applied LED lamps.

The minimum start value of both channels separately can be adjusted by means of the two adjusting screws. The dimmer is easy to install in a single, standard flush-mounting box. Unique to this duo-dimmer is the hotel switching option for each channel. Hotel switching in combination with a normal two-way switch.

Light sources

On a dimmer, you use dimmable light sources. The quality of the LED lamp determines how well it dims. The Tradim 2494H is suitable for the following lamps:

	LED lamps - 12 Volt: maximum 80 watt* - 230 Volt: maximum 70 watt
	LED filament lamps - 230 V: maximum 70 watt
	Halogen bulbs - 12 V: maximum 80 watt* - 230 V: maximum 100 watt
	Light bulbs - 230 V: maximum 100 watt

* Depending on lamp and driver/transformer combination

Cover plate and dimmer knobs

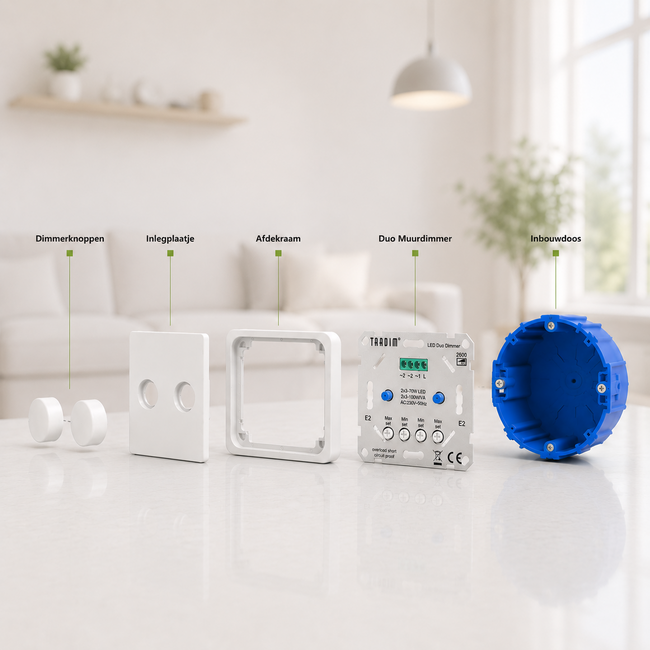

The Tradim 2494H Wall Dimmer is supplied without cover plate and dimmer knobs. You can easily order these here. The standard switching materials from Busch Jaeger, Jung, Gira, Berker and Peha can be added to this dimmer.

Installation

Always connect the dimmer according to the wiring diagram provided. Do you have no knowledge of electricity? Then have this done by a professional! The dimmer fits into standard flush-mounting boxes.
TIP! Always test the dimmer before fitting it in the wall. Damaged dimmers due to screwing are not covered by our return policy.

Wall dimmers

Wall dimmers, installed in the wall, allow you to adjust the light intensity in a room. They improve the atmosphere for different occasions and save energy by reducing power consumption. They also extend the life of lamps. These versatile devices are valuable additions to both domestic and commercial spaces.

Warranty

We offer a 2-year warranty. Because the 2494H Wall Dimmer has no peak voltage, this has no consequences for the lifespan of your lighting.
