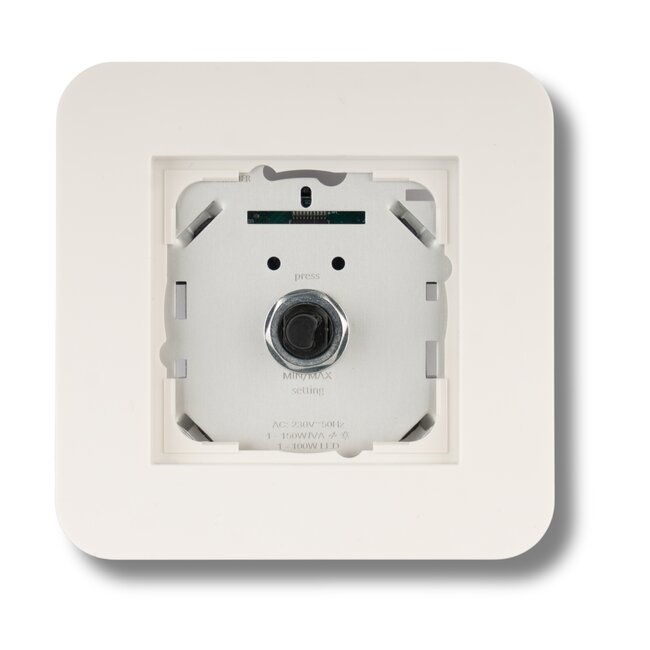

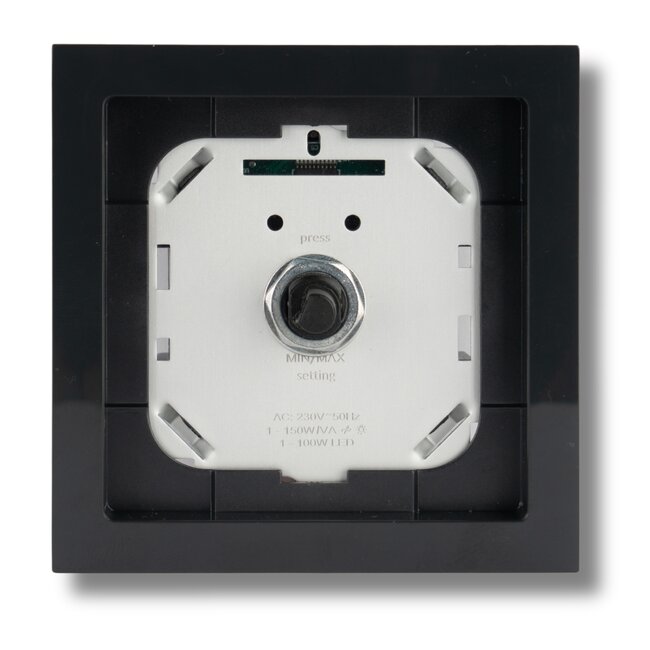

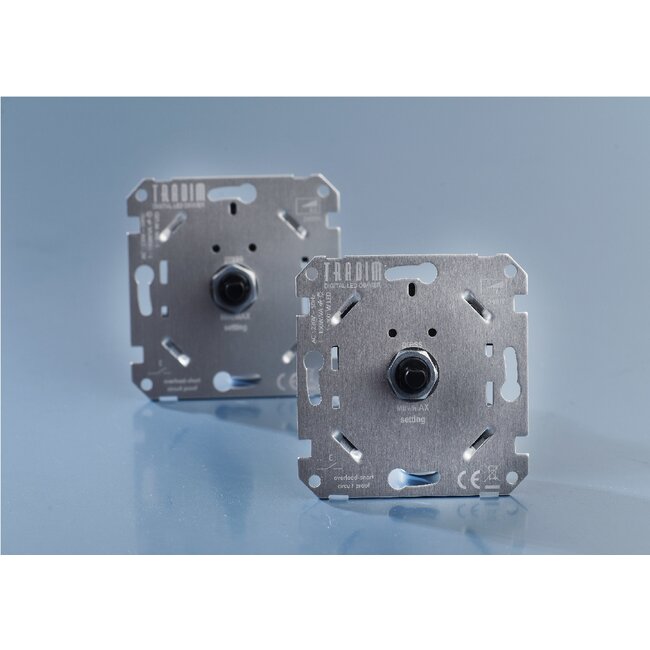

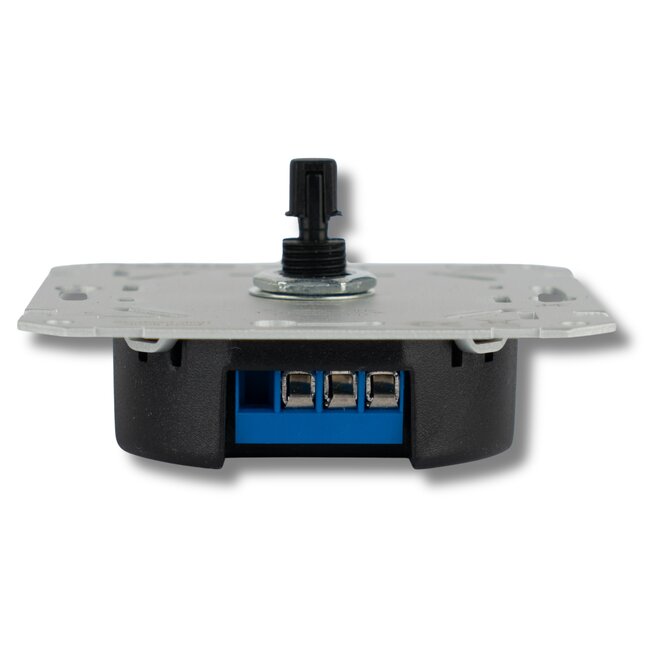

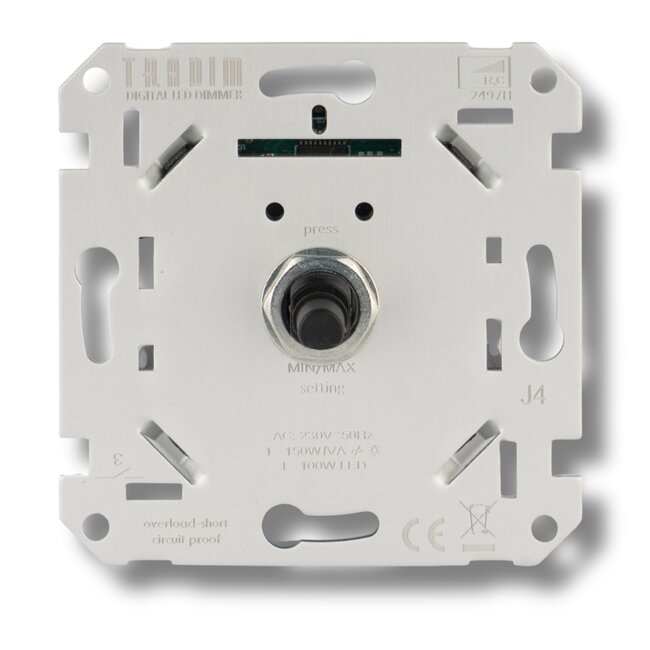

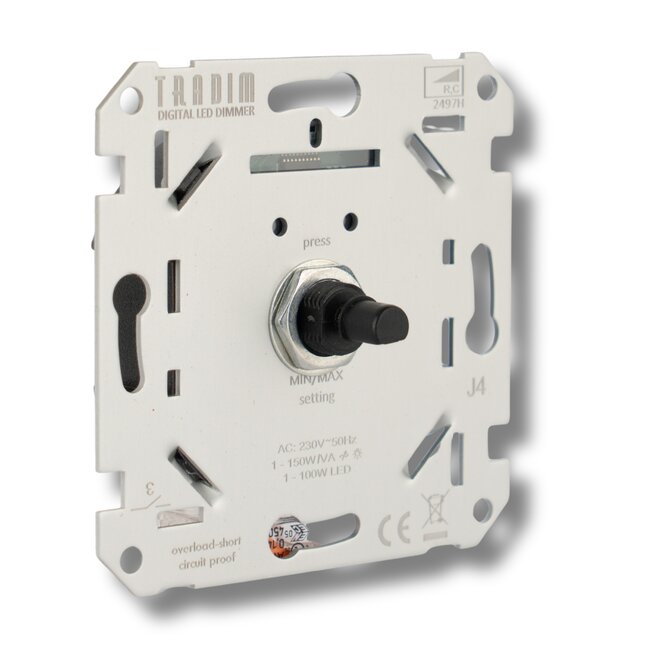

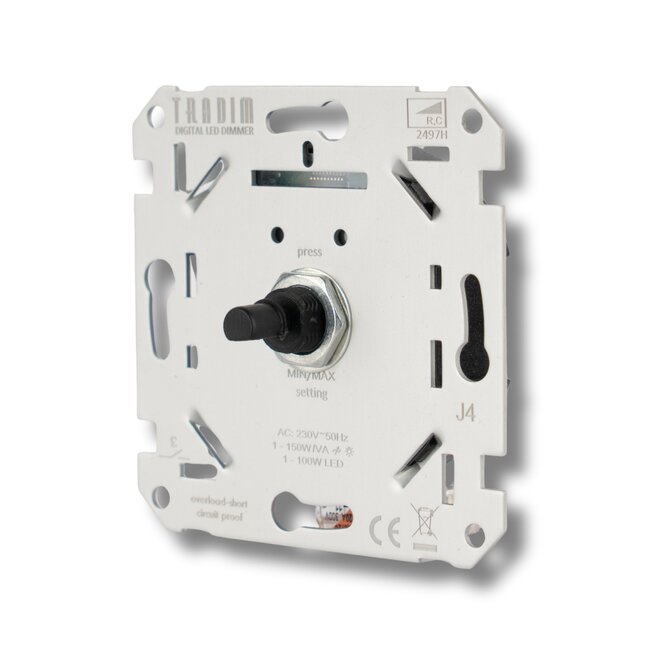

2497H: One of Tradim's latest LED wall dimmer models

The dimmer has a soft start for a favourable effect on the life span of the LED lamps used. The dimmer can be programmed in the MIN and MAX settings of the connected light source(s) and remembers the last selected dimmer setting. The 2497H has hotel switching by means of an extra connection to the dimmer. There is no need for a zero wire. The 2497H (230VAC/50Hz, 1-150W/VA) is a phase cut dimmer ('R,C').

Light sources

On a dimmer, you use dimmable light sources. The quality of the LED lamp determines how well it dims. The Tradim 2497H wall dimmer is suitable for the following lamps:

	LED lamps - 12 Volt: maximum 120 Watt * - 230 Volt: maximum 100 Watt
	LED Filament lamps - 230 Volt: maximum 100 Watt Filament stabiliser may be needed!
	Halogen bulbs - 12 V: maximum 120 Watt * - 230 V: maximum 150 Watt
	Incandescent lights - 230 Volt: maximum 150 Watt

* Depending on lamp and driver/transformer combination

Maximum power

This LED dimmer is suitable for 5-150 W/VA or 5-120W LED. Never load a dimmer more than 80% of its maximum power!

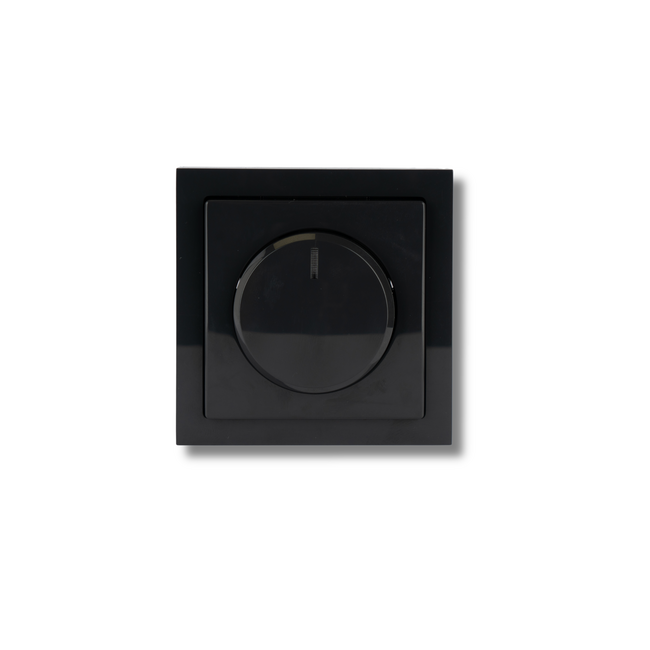

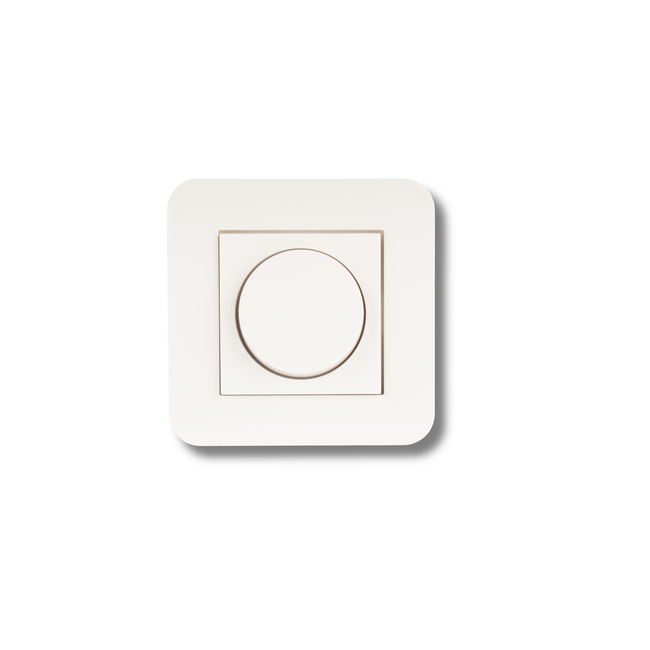

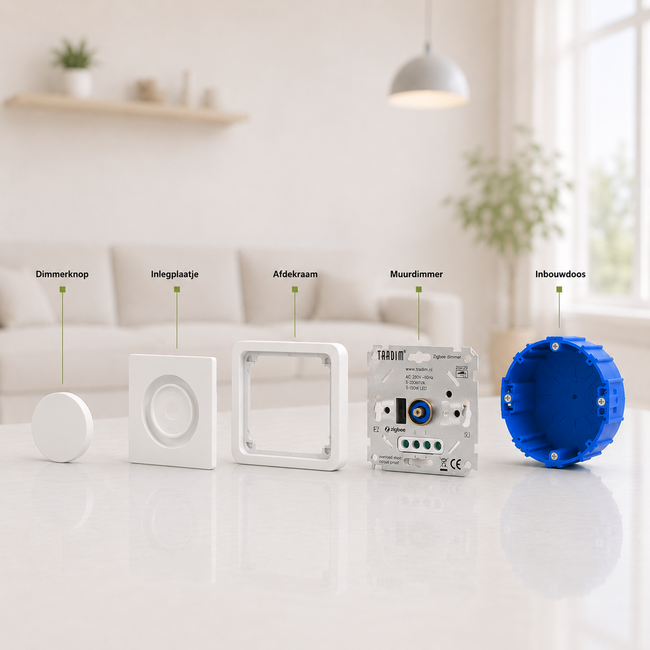

Cover plate and dimmer knobs

The Tradim 2497H LED Wall Dimmer is supplied without cover plate and dimmer knobs. You can easily order these here. The standard switching materials from Busch Jaeger, Jung, Berker and Peha can be added to this dimmer.

Installation

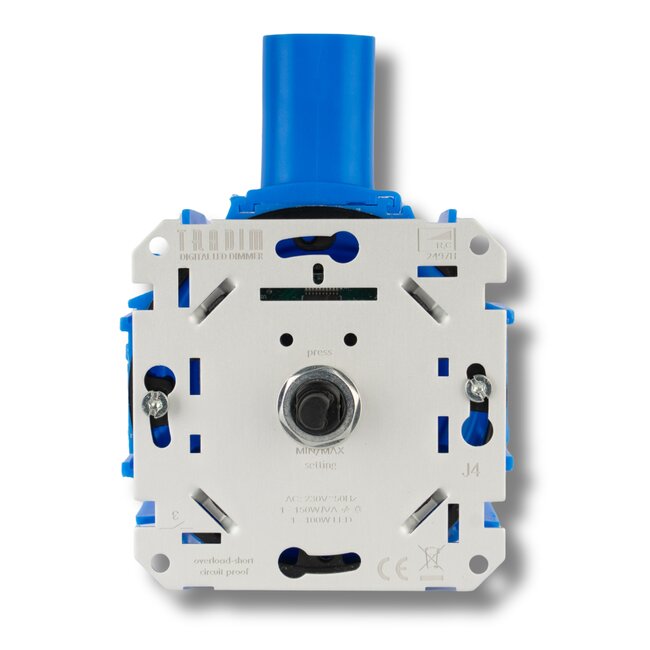

Always connect the dimmer according to the wiring diagram provided. Do you have no knowledge of electricity? Then have this done by a professional! The dimmer fits into standard flush-mounting boxes.

This dimmer is precise and easy to adjust via the dimmer button.

TIP! Always test the dimmer before fitting it in the wall. Damaged dimmers due to screwing are not covered by our return policy.

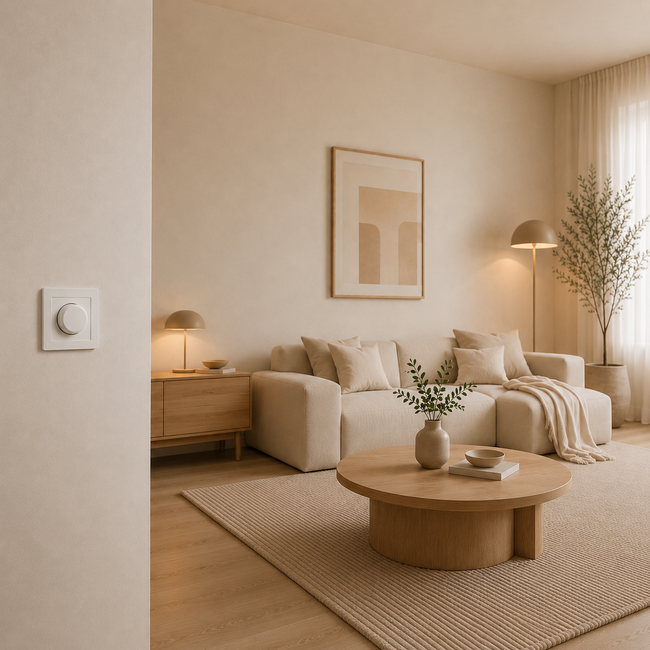

Wall dimmers

Wall dimmers, installed in the wall, allow you to adjust the light intensity in a room. They improve the atmosphere for different occasions and save energy by reducing power consumption. They also extend the life of lamps. These versatile devices are valuable additions to both domestic and commercial spaces.

User manual

View the user manual here

Learn step by step how to connect the dimmer correctly!

Video tutorial

Warranty

We offer a 2-year warranty. Because the 2497H LED Wall Dimmer has no peak voltage, this has no consequences for the lifespan of your lighting.
