Tradim floor dimmer suitable for dimming 12V LED lamps, with a power of 1 to 25 W/VA. Read more.

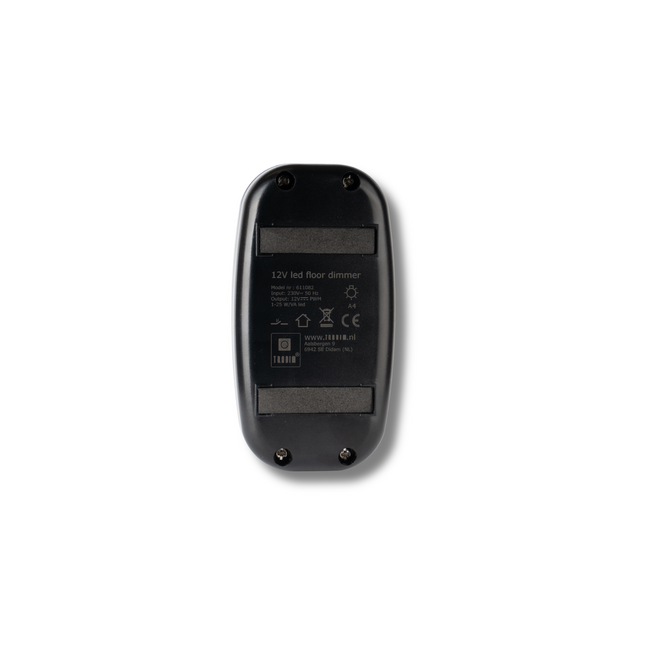

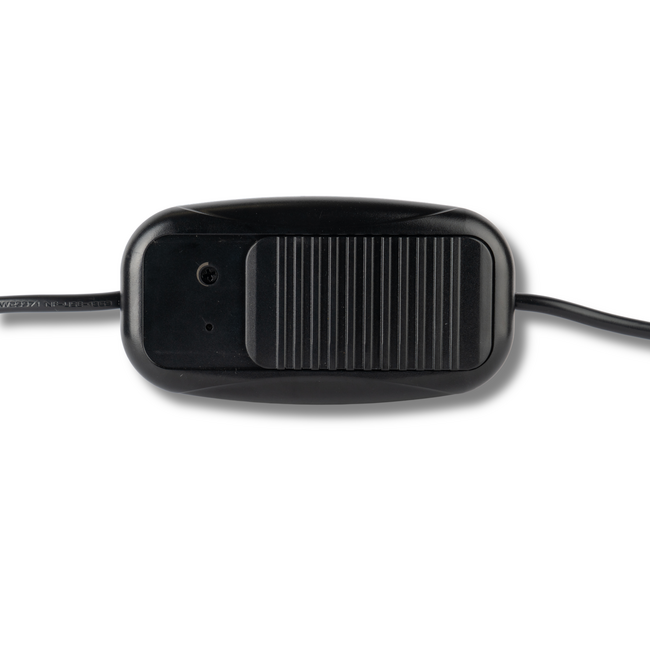

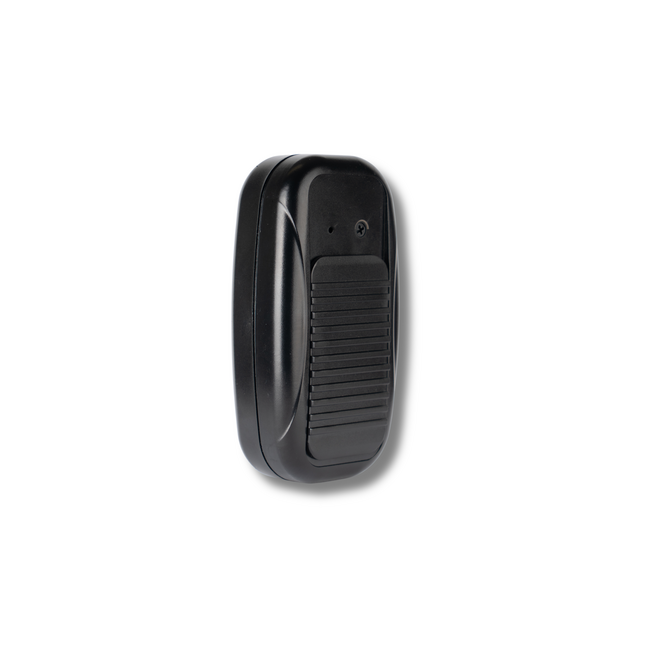

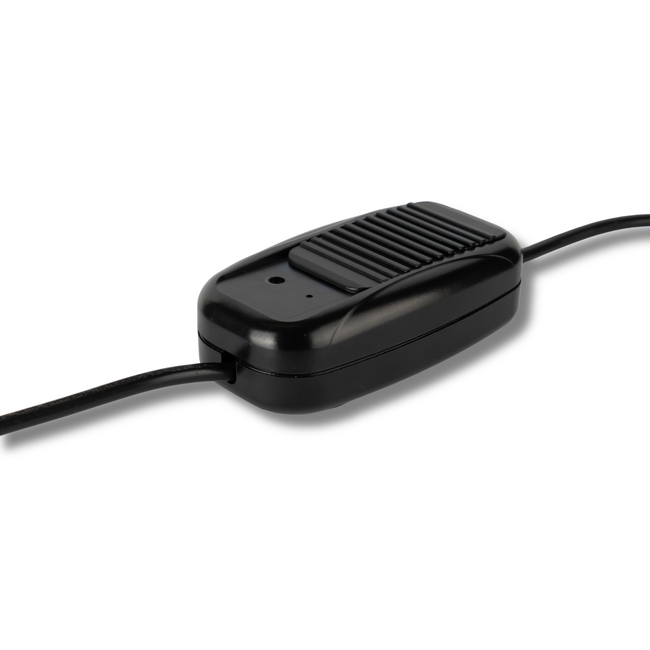

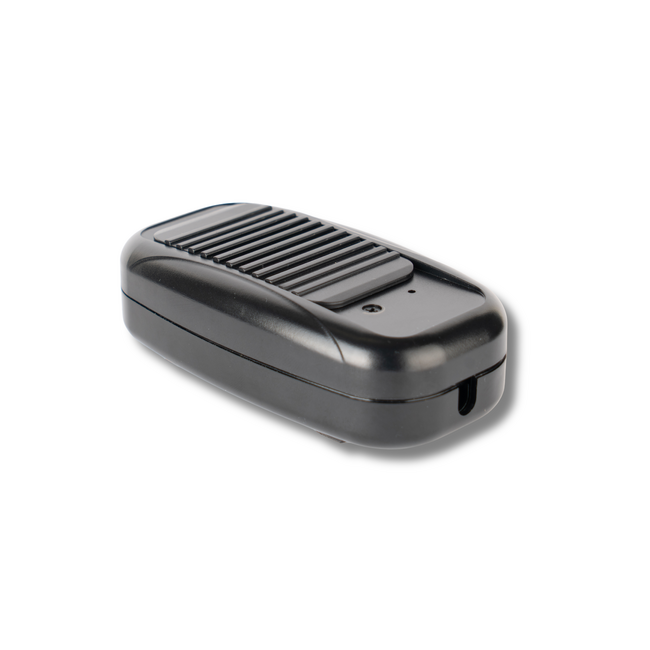

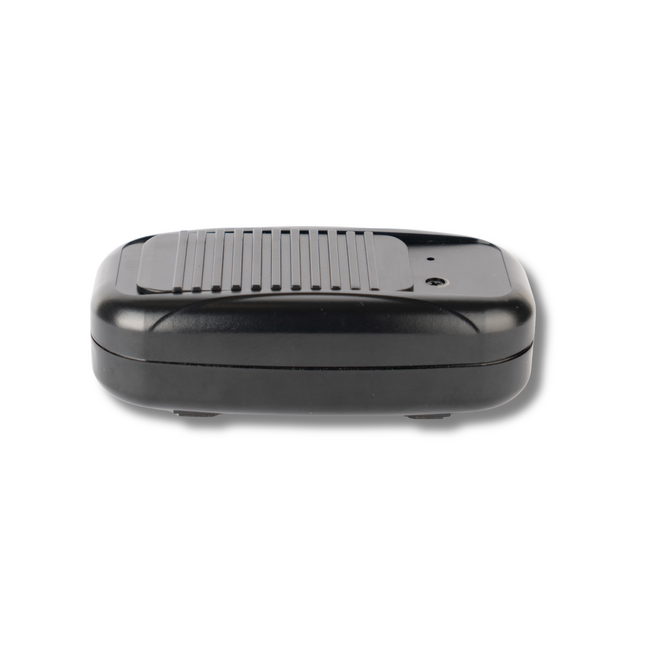

The new Tradim floor dimmer model 611082 is suitable for dimming 12V LED
lamps such as G4, MR11 and GU5.3. The output is from 1 to 25 W/VA.
By means of the slide switch, the lamp can be dimmed and can be
100% off. Inside is an adjustment potentiometer with which the minimum dimming setting
can be set. The dimmer has a soft start for a favourable influence on the
lifetime of the lighting used. Dimming range in the low to 0.1% range. Standby consumption
of only 0.3 watts. Extremely suitable for: G4, MR11 and LED strips. This dimmer has been
extensively tested with lamps from Philips, Eglo, Calex and Segula, among others.
The dimmer works according to the principle of PWM (Pulse-Width Modulation), which is a modulation technique
in which pulses are emitted at a fixed frequency whose width is varied.
is varied. The advantages of the PWM dimming technique are:
Thanks to this modulation technique, this dimmer is very suitable for dimming LED.
The dimmer is an excellent replacement for switching from energy-hungry 12V halogen lamps to energy-efficient 12V dimmable LED lamps, because of its integrated driver.
Light sources
On a dimmer, you use dimmable light sources. The quality of the LED lamp determines how well it dims. The 611082 floor dimmer is suitable for the following lamps:
 |
LED bulbs |
Note: A LED driver is required with this dimmer
Maximum power
This Tradim 611082 floor dimmer is suitable for 12V LED lamps 1-25W/VA. Never load a dimmer more than 80% of its maximum power!
Installation
Always connect the dimmer according to the wiring diagram provided. Do you have no knowledge of electricity? Then have a professional do it for you!
Floor dimmers
Floor dimmers are convenient devices that serve to adjust the intensity of lighting in a room. They are designed to connect floor lamps and allow users to adjust lighting as desired. Floor dimmers can help create the right atmosphere and offer flexibility for different activities in a room. They are a practical and aesthetic addition to interiors.
Warranty
We offer a 2-year warranty. As the 611082 floor dimmer has no peak voltage, this has no consequences for the service life of your lighting.
