The led pulse switch 3-200W/VA, 150W led is suitable for dimming (filament) led, halogen and incandescent lamps. By means of these pulse switches, the dimmer can be operated from different locations. Read more.
A pulse dimmer is not equipped with a conventional dimmer shaft but with a click system. The dimmer is built in behind a pulse switch and is controlled by this click system. The way the switch is pressed determines whether the lighting is turned on or off, or dimmed.

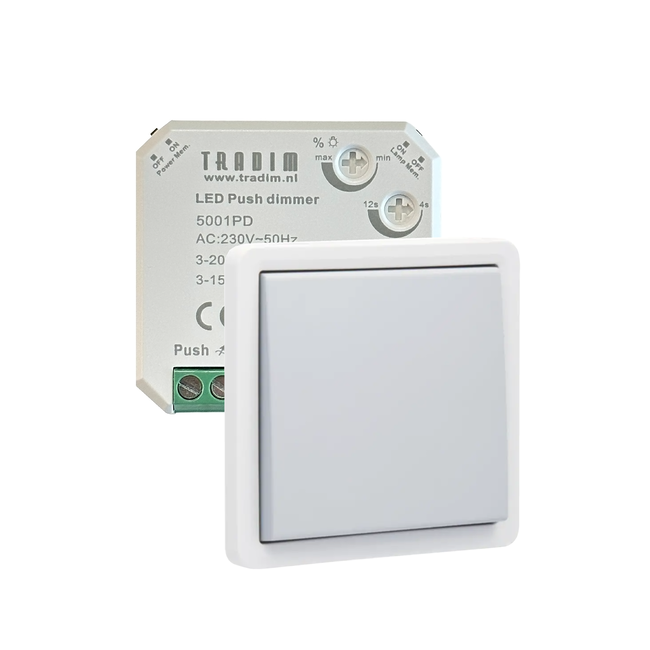

Through these pulse switches, the dimmer can be operated from different locations. The dimmer can be operated with up to 15 pulse switches and can be used universally with all brands of pulse switches such as Gira, Jung, Peha, Berker, Kopp, etc.
The dimming speed (how fast the dimmer goes from minimum to maximum dimming setting) is easy to set as well as the minimum and maximum dimming setting using the adjusting screw. In addition, the dimmer has an option to remember the last dimming setting, even if there has been a power failure.

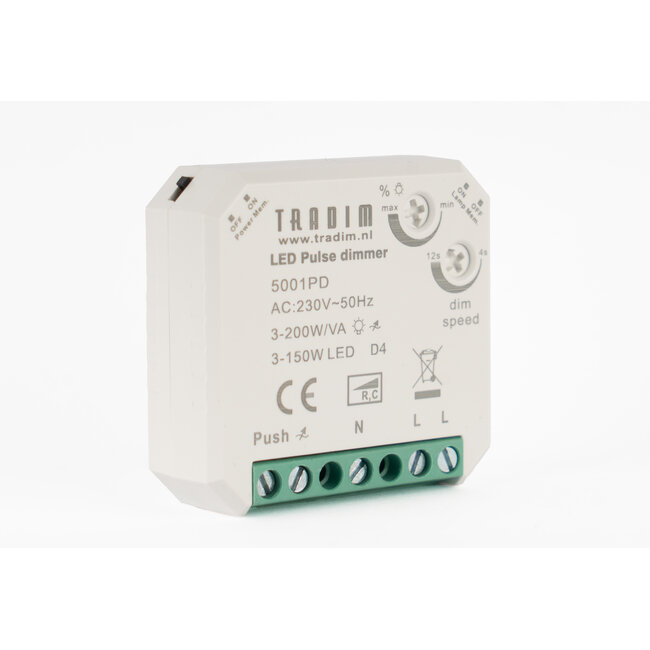

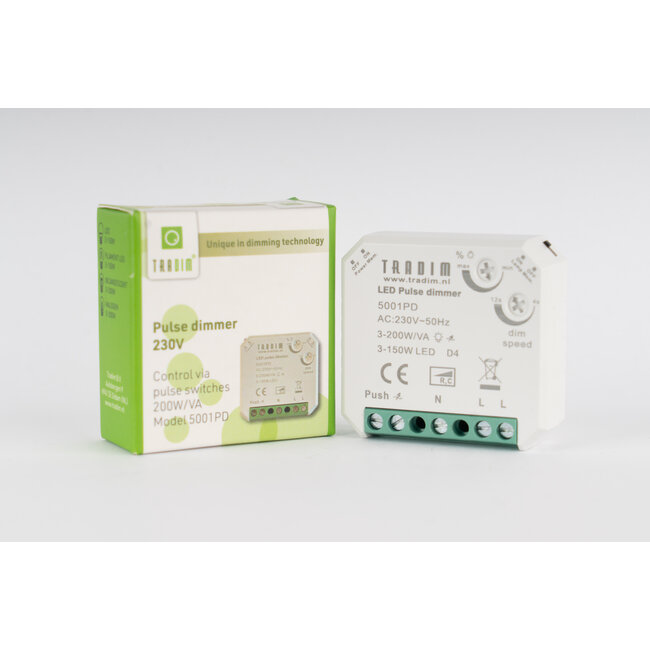

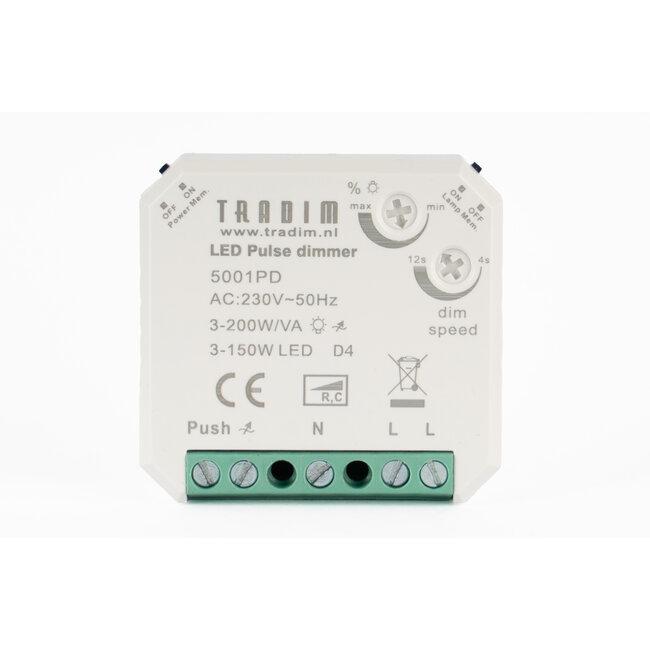

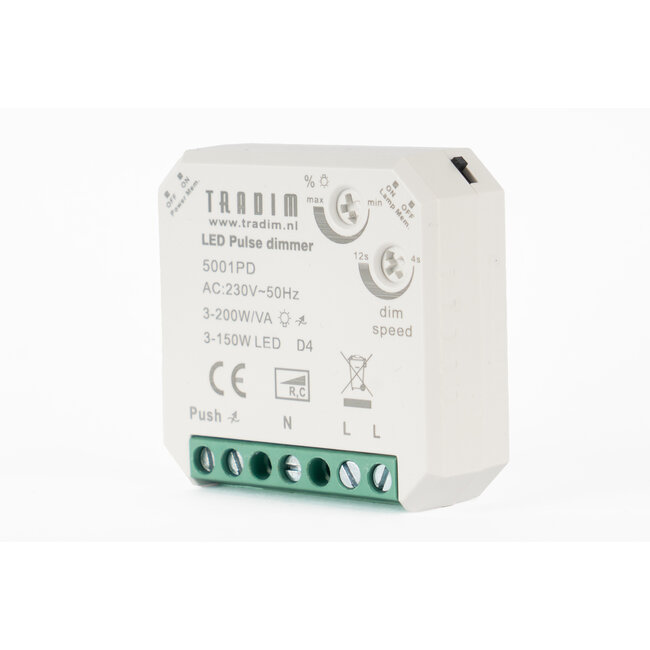

The LED pulse dimmer 3-200W/VA. 150W LED is suitable for dimming (filament) LED, halogen and incandescent lamps. It is a phase cut dimmer R,C. This dimmer has a soft start for a favorable influence on the lifetime of the applied led lamps.
The size is 46,5x49x17,55mm. A point of attention is the mounting depth of the pulse dimmer. Check to ensure that the whole (pulse dimmer + dimmer module 17,55mm) fits the flush-mounting box.
Light sources
On a dimmer, you use dimmable light sources. The quality of the LED lamp determines how well it dims. The Tradim 5001PD Pulse dimmer is suitable for the following lamps:
 |
LED lamps |
|
|
LED Filament lamps |
 |
Halogen bulbs |
|
|
Incandescent lights |
* Depending on lamp and driver/transformer combination
Installation

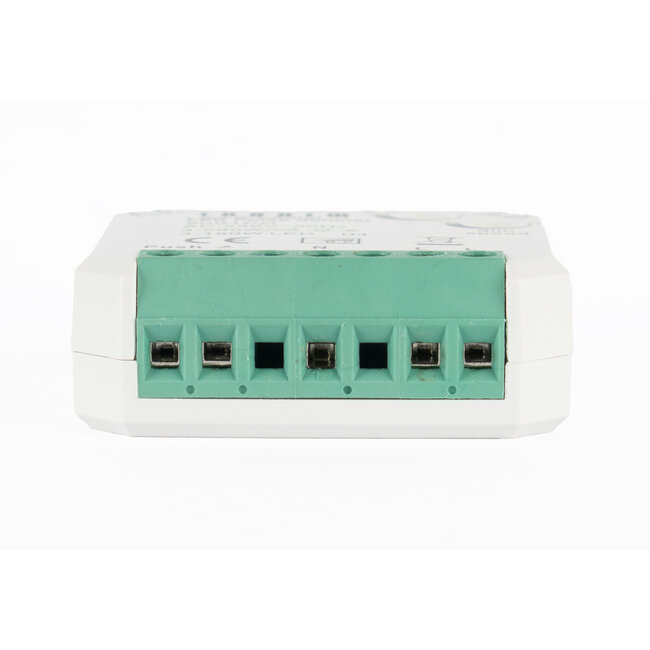

Always connect the dimmer according to the wiring diagram provided. Do you have no knowledge of electricity? Then have this done by a professional! The dimmer fits into standard flush-mounting boxes.
TIP! Always test the dimmer before fitting it in the wall. Damaged dimmers due to screwing are not covered by our return policy.
Download the user manual here.
Watch the instructional video for installation below!
Warranty
We offer a 2-year warranty. Because the 5001PD Pulsdimmer has no peak voltage, this has no consequences for the lifespan of your lighting.
